Ellipses for bivariate normal

Multivariate Analysis

Freddy Hernández-Barajas

MASS package to simulate from a \(N_p\)

library(MASS)

Generating one sample

n <- 100
Media <- c(-1, 2)
Sigma <- matrix(c(10, -4,
                  -4, 20), byrow=TRUE, ncol=2)

df <- mvrnorm(n=n, mu=Media, Sigma=Sigma)
df <- as.data.frame(df)

The simulated data

head(df)

          V1         V2
1 -0.8061237 -0.4915237
2 -0.6249777  1.7525209
3  7.8307234 -2.0325077
4 -4.4661228 13.7029644
5  0.3082988 -6.8614756
6 -3.3198190 -6.6730524

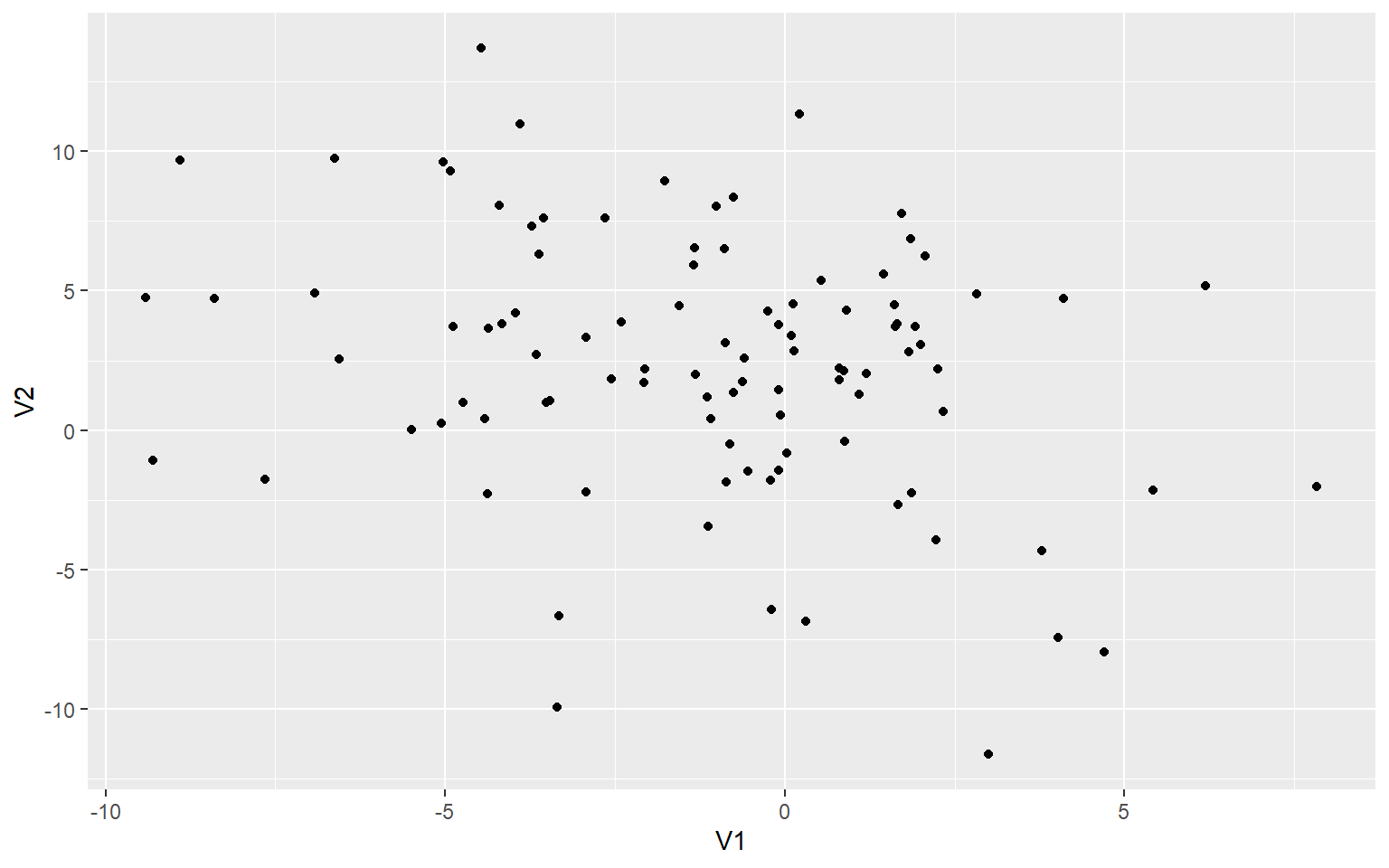

The scatterplot

require(ggplot2)
ggplot(df, aes(V1, V2)) + geom_point()

Ellipse

ggplot(df, aes(V1, V2)) +
  geom_point() + stat_ellipse(level=0.97)

Example with medidas_cuerpo2 dataset

The medidas_cuerpo2 dataset contains measures of weight, height, neck circumference and wrist circumference for students at UNAL. Below a figure with an illustration of the measures collected.

The dataset

• Reading data
• Data

url <- "https://raw.githubusercontent.com/fhernanb/datos/master/medidas_cuerpo2"
datos <- read.table(file=url, header=TRUE)

Ano	Semestre	Peso	Sexo	Estatura	circun_cuello	circun_muneca
2020	1	47.60	F	1.57	29.5	13.9
2020	1	68.10	M	1.66	38.4	16.0
2020	1	68.00	M	1.90	36.5	16.6
2020	1	80.00	M	1.76	38.0	17.1
2020	1	68.10	M	1.83	38.0	17.1
2020	1	56.10	F	1.66	33.0	14.7
2020	1	54.20	F	1.65	32.5	15.4
2020	1	69.20	M	1.78	40.5	16.5
2020	1	74.30	M	1.68	38.0	16.1
2020	1	73.30	M	1.69	37.5	16.3
2020	1	102.20	M	1.79	41.5	17.1
2020	1	46.70	F	1.49	31.5	13.8
2020	1	63.80	M	1.74	38.0	16.4
2020	1	76.90	M	1.73	39.5	17.6
2020	1	52.50	F	1.52	32.5	14.4
2020	1	67.30	M	1.76	36.5	16.1
2020	1	79.10	M	1.82	38.0	18.0
2020	1	58.40	F	1.62	33.0	14.3
2020	1	59.30	F	1.68	32.0	14.2
2020	1	57.30	F	1.61	32.0	14.7
2020	1	67.60	F	1.64	34.5	15.3
2020	1	62.70	F	1.67	33.0	15.3
2020	1	71.90	M	1.64	38.5	16.8
2020	1	74.90	M	1.75	40.0	16.8
2020	1	73.00	M	1.85	37.2	16.4
2020	1	63.80	M	1.71	35.0	15.6
2023	1	78.10	M	1.69	40.0	17.7
2023	1	53.85	M	1.69	34.1	17.5
2023	1	51.45	F	1.63	30.1	14.4
2023	1	47.95	F	1.59	30.1	14.6
2023	1	70.65	M	1.66	37.6	17.5
2023	1	82.55	M	1.85	40.0	17.5
2023	1	78.00	M	1.66	37.6	17.5
2023	1	71.70	M	1.76	37.1	16.9
2023	1	70.75	F	1.52	38.5	16.4
2023	1	52.80	M	1.75	33.4	14.6
2023	1	48.80	F	1.52	31.1	14.4
2023	1	68.70	M	1.85	36.0	16.0
2023	1	77.70	M	1.79	38.0	15.0
2023	1	82.95	M	1.74	37.0	17.0
2023	1	57.55	F	1.62	30.5	15.4
2023	1	64.75	M	1.83	34.8	16.9
2023	1	62.65	F	1.62	33.1	15.2
2023	1	62.45	M	1.75	35.7	16.0
2023	1	62.75	M	1.75	35.5	16.1
2023	1	84.75	M	1.73	40.2	20.0
2023	1	47.35	F	1.54	31.5	14.6
2023	1	55.45	F	1.54	31.7	15.0
2023	1	67.30	M	1.82	37.1	17.5
2023	1	55.05	F	1.59	31.0	13.9
2023	1	49.85	M	1.67	25.5	15.0
2023	1	55.80	M	1.74	36.0	16.5

Using only weight and height variables from 2023

library(dplyr)
datos %>% filter(Ano == 2023) %>% select(Peso, Estatura, Sexo) -> dt
head(dt)

   Peso Estatura Sexo
1 78.10     1.69    M
2 53.85     1.69    M
3 51.45     1.63    F
4 47.95     1.59    F
5 70.65     1.66    M
6 82.55     1.85    M

Checking normality

library(MVN)
mvn(data=dt[, 1:2], mvnTest="mardia")

$multivariateNormality
             Test        Statistic            p value Result
1 Mardia Skewness  1.0685561773063  0.899228488052355    YES
2 Mardia Kurtosis -1.6477228050437 0.0994095661074923    YES
3             MVN             <NA>               <NA>    YES

$univariateNormality
              Test  Variable Statistic   p value Normality
1 Anderson-Darling   Peso       0.4972    0.1937    YES
2 Anderson-Darling Estatura     0.3325    0.4900    YES

$Descriptives
          n      Mean   Std.Dev Median   Min   Max  25th    75th       Skew
Peso     26 63.909615 11.863490  62.70 47.35 84.75 54.15 71.4625  0.2464979
Estatura 26  1.688462  0.101654   1.69  1.52  1.85  1.62  1.7500 -0.1065326
          Kurtosis
Peso     -1.323122
Estatura -1.169331

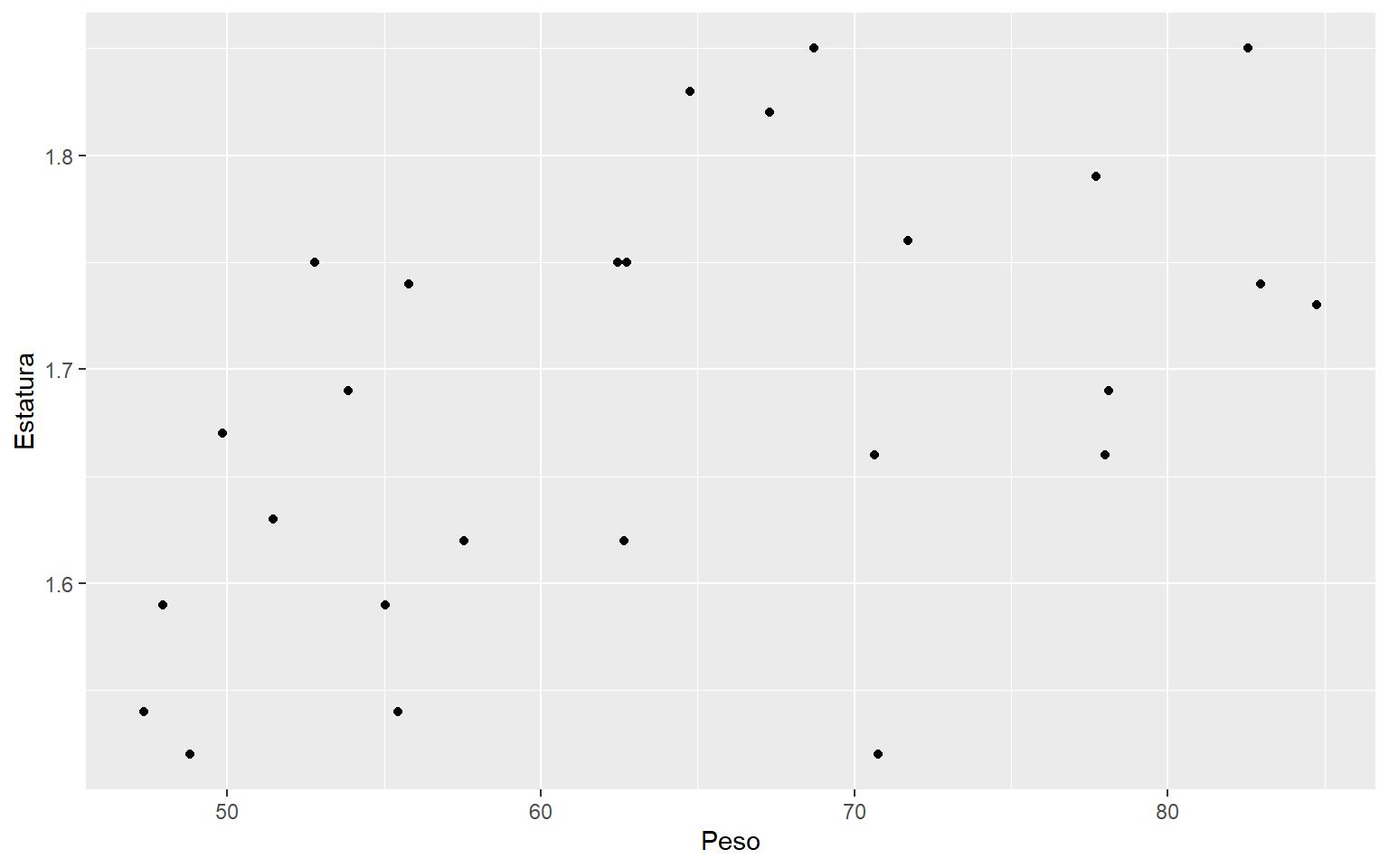

The scatterplot

require(ggplot2)
ggplot(dt, aes(Peso, Estatura)) + geom_point()

The ellipse

ggplot(dt, aes(Peso, Estatura)) +
  geom_point() + stat_ellipse(level=0.90)

Conditioning

ggplot(dt, aes(Peso, Estatura, color = Sexo == "M")) +
  geom_point() + stat_ellipse(level=0.90)

Other

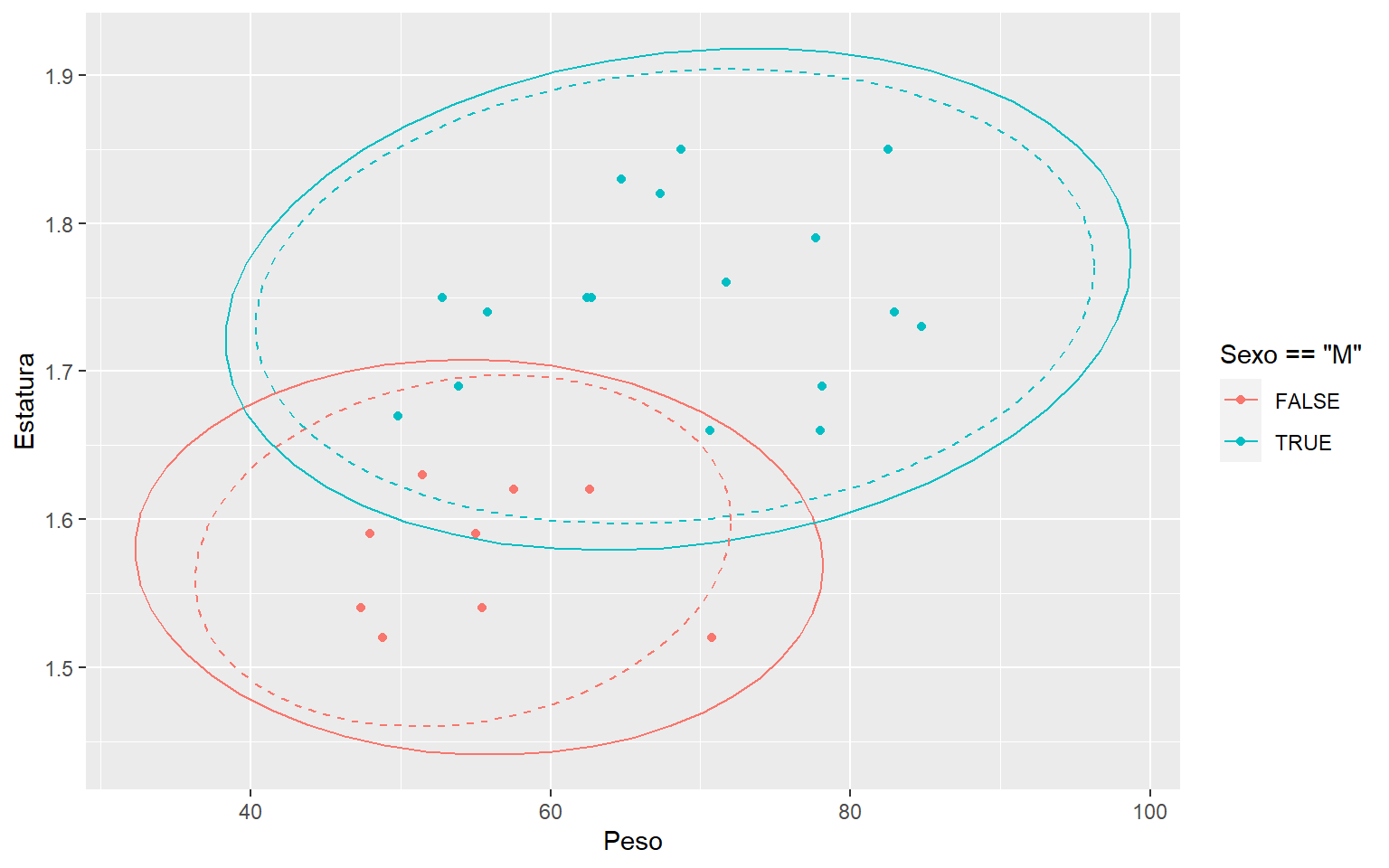

ggplot(dt, aes(Peso, Estatura, color = Sexo == "M")) + geom_point() +
  stat_ellipse(type = "norm", linetype="solid") +
  stat_ellipse(type = "t", linetype="dashed")
